Code 3 Lead Flashing is a lightweight, versatile rolled lead sheet widely used for protecting vulnerable junctions on pitched roofs. Its 1.32 mm thickness offers excellent flexibility, making it ideal for fine detailing where a lighter material is preferred without sacrificing long-term weather protection.

This grade of lead is typically used for:

• Step flashings to abutments
• Soakers beneath slate or tile coverings
• Dormer cheek flashings and small vertical details
• Light-duty vertical cladding transitions (heavier grades used above)
• Conservatory or lean-to roof flashings

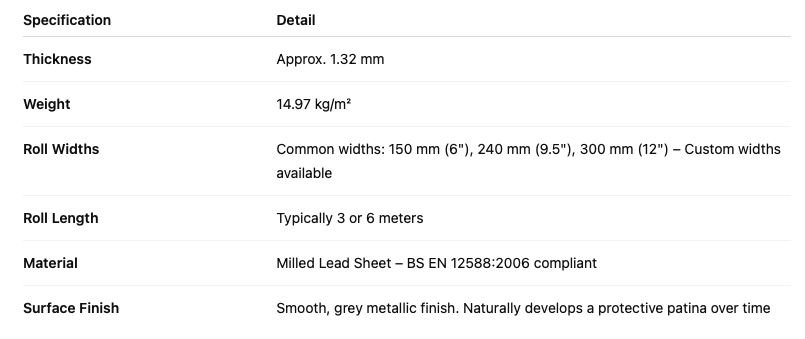

Technical Specifications

Code 3 lead Flashing

Technical Information

Composition & Standards

All Code 3 lead flashing supplied by The Reclaimed Company® is produced to BS EN 12588, the British and European standard for rolled (milled) lead sheet. This standard guarantees consistent quality and performance through:

• Controlled thickness within a ±5% tolerance for predictable detailing
• High material purity (minimum 99.95% lead) for durability and corrosion resistance
• Excellent malleability for accurate dressing around abutments, contours and joint lines

The Code 3 designation refers to the sheet’s nominal thickness and weight per square metre, ensuring clarity and compatibility across roofing, restoration and construction projects.

Applications & Suitability

Code 3 lead is best suited to non-exposed or supported flashing work where a lighter, more flexible sheet is appropriate. It is commonly used in:

• Soakers installed beneath slate or tile coverings
• Step flashings and abutment details around chimneys and walls
• Repair work in conservation areas and period properties
• Lean-to roofs, small canopies and light-duty vertical transitions

Important: Because of its lighter gauge, Code 3 lead should always be fully supported in horizontal applications to avoid distortion or sagging. For exposed areas, foot traffic or wider spans, upgrade to Code 4 or Code 5.

Installation Advice

• Fixings: Use copper or stainless steel fixings to prevent galvanic corrosion and ensure long-term durability.
• Patination oil: Apply immediately after installation to minimise white staining and maintain surface appearance.
• Lap guidance: Provide adequate laps and allowances for thermal expansion in accordance with BS 6915.
• Ventilation: Maintain airflow behind the sheet to reduce condensation and prevent underside corrosion.

Sustainability & Recycling

Lead is one of the most sustainable roofing materials available. It is 100% recyclable without loss of quality and offers exceptional whole-life performance when installed correctly. By purchasing through The Reclaimed Company®, you’re choosing a material with low environmental impact, long service life and excellent circular-economy credentials.
