MKII Crossley Tudor clay pantiles

Name: MKII Crossley Tudor clay pantiles
SKU: Crossley_Tudor_clay_pantiles
Availability: InStock

£5.00 + Vat

130 in stock

Tiling a roof? You may also need...

3.35 x 50mm Aluminium clout nails

Sold per Kg

Add for £9.10 + Vat

Crossley Tudor | Left hand verge

Crossley Tudor clay pantiles
Left hand verge tiles

Add for £12.00 + Vat

Out of stock

Galvanised Lath Nails 65 mm x 3.35mm | 5Kg

Glavanised roundwire nails, 65 mm x 3.35 mm
Sold in 5 KG quantity (plastic tub)
Used for fixings battens to rafters.
Comply with BS5534:2014+A2:2018

Add for £17.73 + Vat

OFVS Eaves Tray 1m long (price per meter!!)

OFVS Eaves tray or Eaves Comb
Combined felt carrier and eaves ventilation.
Combs prevent bird access.
Used with pantiles or profiled interlocking tiles.
Collection available
Nationwide delivery service

Add for £4.15 + Vat

Proctor Air ® Roof felt

Proctor Air roof felt is a unique three layer nonwoven, spunbonded, polypropylene breather membrane.
Used as a pitched roof underlay and is fixed beneath tiles and slates, and even hard metal roof coverings.
Provides a secondary barrier to the ingress of rain, wind and snow.
Collection available
Nationwide delivery service

Add for £120.00 + Vat

National Pallet Delivery
In store click & collect
Quality reclaimed products

Product Info

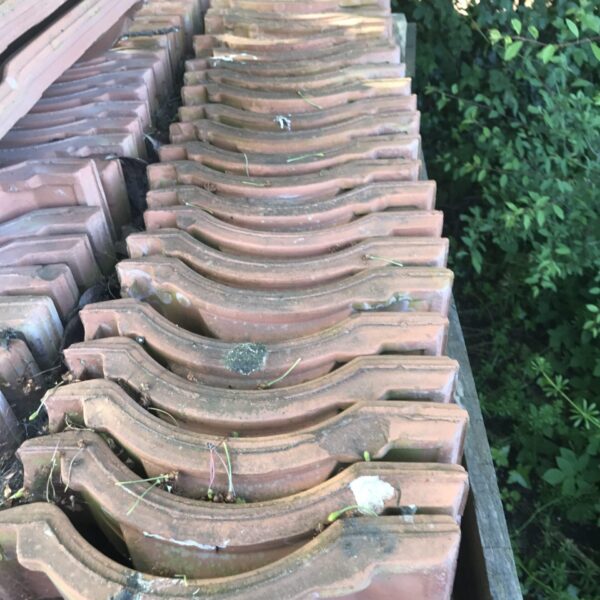

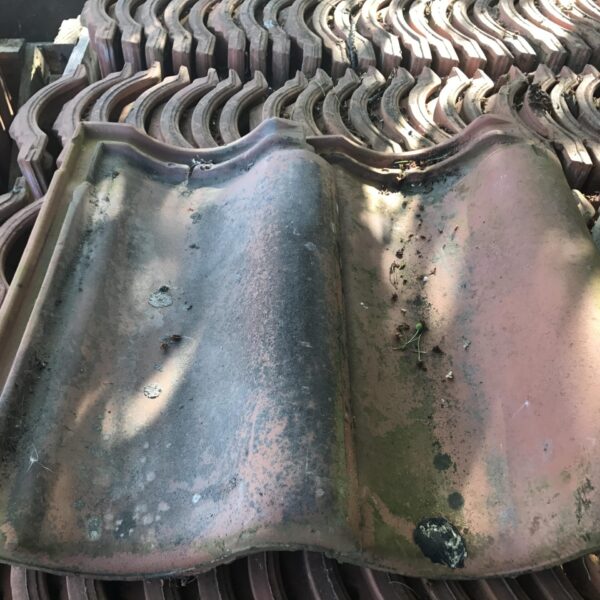

Reclaimed MKII Crossley Tudor roof tiles in natural red.

These tiles are no longer manufactured and are subsequently ideal for anyone looking to repair an existing roof area or create a new extension to match an existing building or structure

A large, deeply-profiled terracotta pantile in double interlocking format. This updated version has a 4″ headlap. Differs on the rear from the Mk I by virtue of a second interlocking rib running across the bottom of the tile parallel with the leading edge.

Weight	4.5 kg

Reviews

There are no reviews yet.

Be the first to review “MKII Crossley Tudor clay pantiles” Cancel reply

You must be logged in to post a review.

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:

Approx. 250 copper nails per kg
Minimum 2 nails per slate
Recommended length: 25–30 mm shank, 3.35 mm (4 gauge) head
