SKU: roofing-lead-code-4-450mm Categories: Code 4, Lead, LEAD | LEAD SUNDRIES Tags: 3m rolls, 6m roll, code 4 450mm, code 4 lead, code 5, lead roll

Roofing Lead Code 4 – 450mm

The Reclaimed Co. Price:

Price range: £71.40 through £140.25 + Vat

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Find more stock

need assistance?

Request Video

code 4 lead rolls
3m rolls available
6m rolls available
nationwide delivery

+Product Info

Description

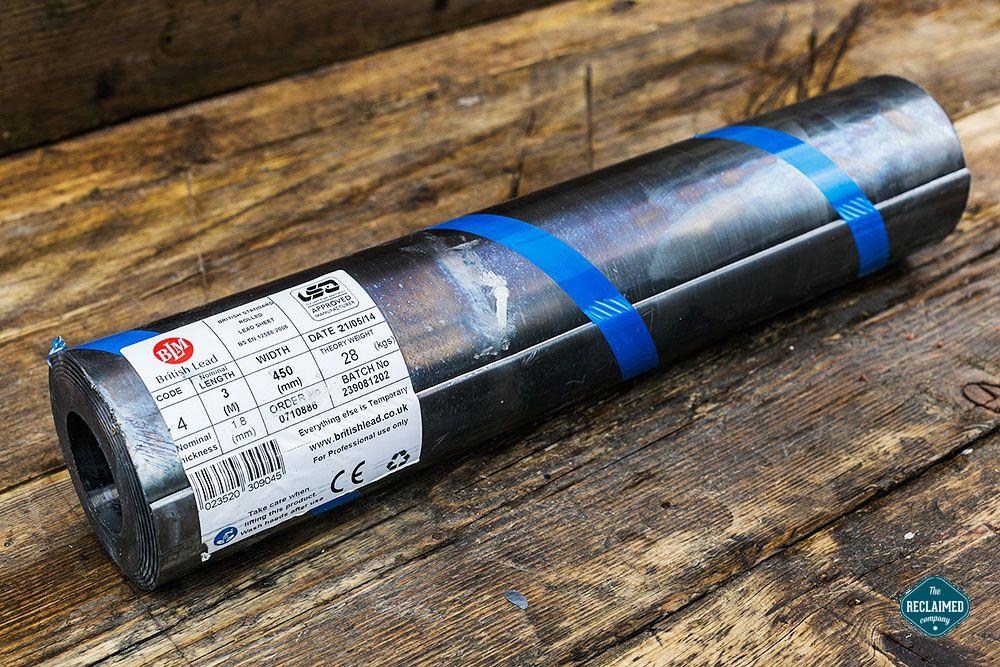

Roofing Lead Code 4 – 450mm

all of our lead has been manufactured to British Standard BS EN12588.

Features
BBA certified
Manufactured to BS EN 12588:2006
Durable, with good longevity
100% recyclable
Malleable and easy to shape
Helps to weatherproof roofs
High resistance to corrosion
Useful for sound reduction
Will out-perform other building materials
Application
Tile and slate soakers
Least demanding roofing jobs
Produced exclusively from used car batteries, Envirolead is a 100% recycled metal that its manufacturer says has the lowest environmental impact possible.

Recommended by the Lead Contractors Association (LCA), Envirolead is BBA certified and manufactured to BS EN 12588:2006 in accordance with British standards and European norms for the building industry.

Envirolead is a smart and extremely reliable rolled lead choice for minimalizing the chances of water ingress occurring in high-risk areas like roofing tiles and brickwork.

This eco-friendly product is available in all thickness codes and can be used on all kinds of buildings, from your standard home to churches, cathedrals, and castles

Lead Spec
Brand Envirolead
Category Lead flashing & alternatives
Certification BS EN 12588, CE marked
Code Code 4
Guarantee 50 years, if you use ALM sundries
Length 6m

Additional information

Weight	N/A
Length	3m, 6m

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
