Reclaimed Rounded Hogs Back Clay Ridge Tile 100-230-400

Name: Reclaimed Rounded Hogs Back Clay Ridge Tile 100-230-400
SKU: RHB-CLAY-450
Availability: InStock

The Reclaimed Co. Price:

£9.00 + Vat

30 in stock

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Directions

Find more stock

need assistance?

Request Video

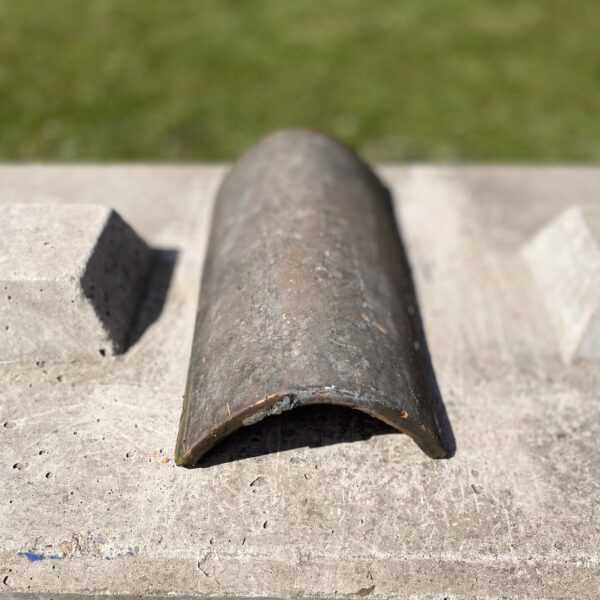

Authentic reclaimed hogs back clay ridge tile
Traditional rounded curved ridge profile
Naturally weathered reclaimed clay finish
Ideal for heritage roofing and restoration projects
Perfect for matching traditional clay roofing systems

+Product Info

Description

Material: Traditional fired clay
Profile: Rounded hogs back ridge tile with smooth curved ridge profile
Type: Reclaimed clay ridge tile designed for roof apex and ridge line applications
Finish: Naturally weathered reclaimed clay surface with aged texture and authentic patina
Colour: Mixed red, orange, and terracotta clay tones with natural weathering and age-related character marks
Condition: Structurally sound reclaimed condition with cosmetic wear consistent with salvaged heritage roofing materials

Overall look & use:
This reclaimed rounded hogs back clay ridge tile features a traditional curved ridge profile designed to provide a smooth and classic finish along roof ridge lines. Its authentic reclaimed appearance and naturally weathered clay finish make it particularly suitable for period properties, heritage restorations, and matching traditional clay roofing systems.

Traditional roof ridge and apex finishing
Matching reclaimed clay roofing systems
Period and heritage roof restoration projects
Architectural salvage and conservation roofing work
Replacing damaged or discontinued hogs back ridge tiles

View more reclaimed ridge tiles in our dedicated collection
here.

Have similar reclaimed roofing materials or architectural salvage to sell? List them on our marketplace at
The Reclaimed Company
and connect with buyers searching for genuine reclaimed materials.

All dimensions are approximate due to the reclaimed nature of the product.

Length	Approx. 400mm
Width	Approx. 230mm
Height	Approx. 100mm
Material	Clay
Colour	Red / Orange / Terracotta
Condition	Reclaimed

Additional information

Weight	8 kg

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
