SKU: paslode Categories: Building Materials, Fixings Tag: paslode

Paslode Roofing Nails 63mm X 3.1mm Galvanised

Name: Paslode Roofing Nails 63mm X 3.1mm Galvanised
SKU: paslode
Availability: InStock

The Reclaimed Co. Price:

£82.00 + Vat

5 in stock (can be backordered)

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Directions

Find more stock

need assistance?

Request Video

Paslode roofing nails, used for fixing battens using a nail gun.
Nail gun roofing nails to comply with BS5534.
63mm x 3.1mm galvanised ring shank nails.
Provides a secure fixing to roof structure.
Complete with 2200 nails and 2 gas canisters, enough for the whole pack.

+Product Info

Description

Paslode Roofing Nails IM350 3.1MM X 63MM RG Galvanised

Paslode Roofing nails, 141221 IM350 3.1MM X 63MM RG GALV PLUS NAIL FUEL PACK X 2200, ideal for roofing applications. Suitable for fixing treated tile battens in accordance with BS5534.

The Paslode 141221 IM350 3.1

Introducing the Paslode 141221 IM350 3.1mm x 63mm RG Galvanised.
Includes nail fuel pack x 2200, a reliable and high-quality solution for your nailing needs.
This pack is specifically designed for the IM350+ and is an essential addition to your toolbox, whether you’re a professional tradesperson or a dedicated DIY enthusiast.
The Nail Fuel Pack features 2,200 nails, each measuring 63mm in length and finished with RG Galv Plus for enhanced durability and corrosion resistance.
Ensures that each nail can withstand the rigors of various applications, providing you with a reliable fastening solution that lasts.

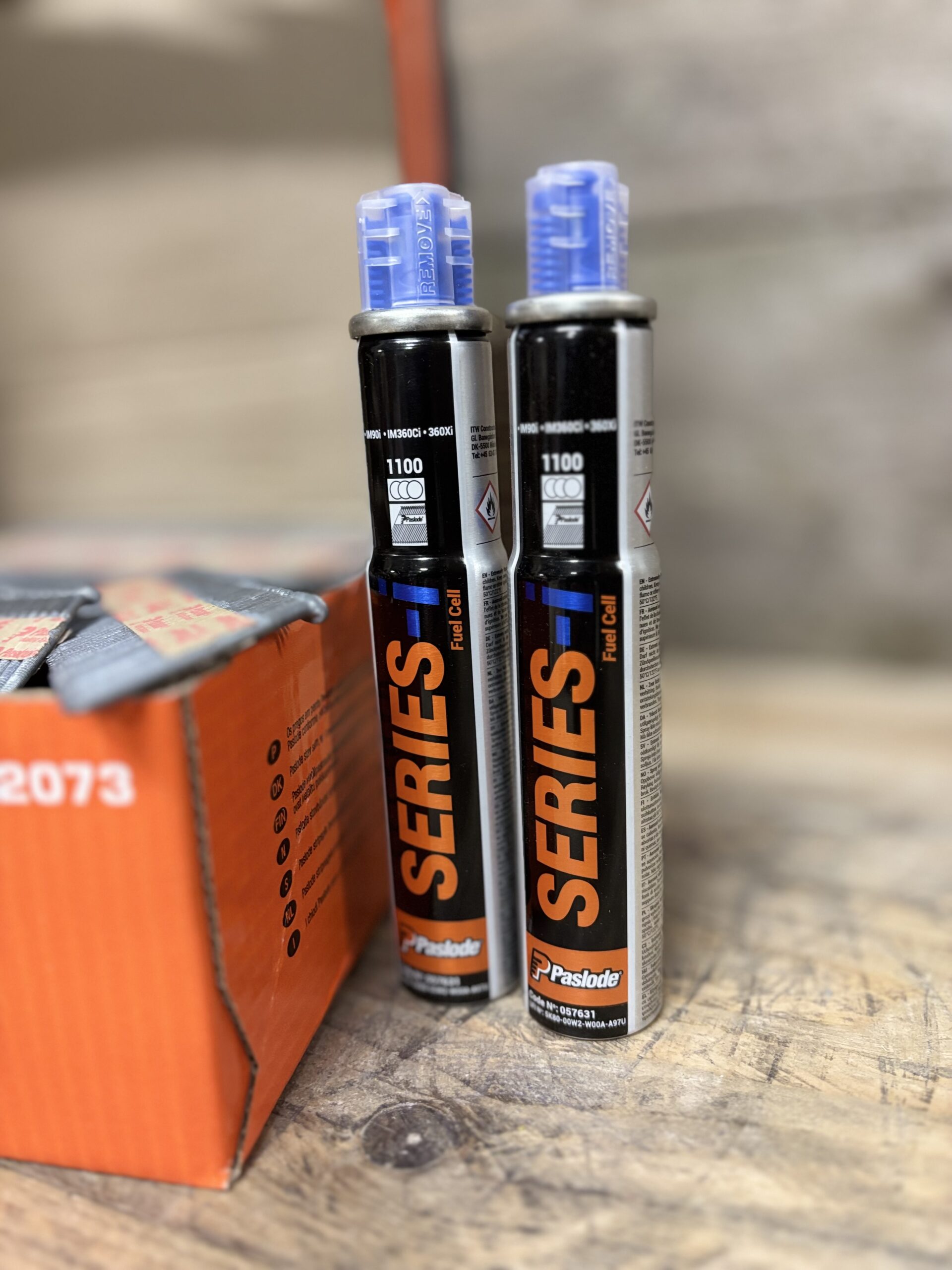

In addition to the nails, the pack includes two fuel cells, ensuring you have the power you need to drive each nail efficiently. This means you can continue your work without interruptions, enhancing your productivity and ensuring your project stays on schedule.
The Paslode 141221 IM350 Nail Fuel Pack is not just about quantity, but also about quality. Each nail is designed to deliver optimal performance, ensuring that your work is not only completed efficiently, but also to the highest standard.
The nails comply with BS5534:2014+A2:2018 for roofing application, the nails can be used to secure roofing battens in accordance with British Standards.
Add 25mm x 50mm battens to your order and a range of other roofing supplies.

Additional information

Weight	6 kg

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
