Goxhill Handmade Pantile

Name: Goxhill Handmade Pantile
Availability: InStock

£1.80 + Vat

2 in stock

Treated Timber Battens 25mm X 50mm per m

John Brash Battens...

JB Red quality roofing battens, 25mm x 50mm treated softwood battens. Such battens are suitable for all roofing applications.

Also known as Lath

For fixing roof tiles, slates, sheets, shingles, cladding and other roofing and facade applications.

Price depicted is per linear metre.

Add for £0.80 + Vat

Proctor Air ® Roof felt

Proctor Air roof felt is a unique three layer nonwoven, spunbonded, polypropylene breather membrane.
Used as a pitched roof underlay and is fixed beneath tiles and slates, and even hard metal roof coverings.
Provides a secondary barrier to the ingress of rain, wind and snow.
Collection available
Nationwide delivery service

Add for £120.00 + Vat

Paslode Roofing Nails 63mm X 3.1mm Galvanised

Paslode roofing nails, used for fixing battens using a nail gun.
Nail gun roofing nails to comply with BS5534.
63mm x 3.1mm galvanised ring shank nails.
Provides a secure fixing to roof structure.
Complete with 2200 nails and 2 gas canisters, enough for the whole pack.

Add for £82.00 + Vat

3.35 x 40mm Aluminium clout nails

Aluminium nails 65 mm x 3.35 mm

Sold per Kg

Add for £9.10 + Vat

National Pallet Delivery
In store click & collect
Quality reclaimed products

Product Info

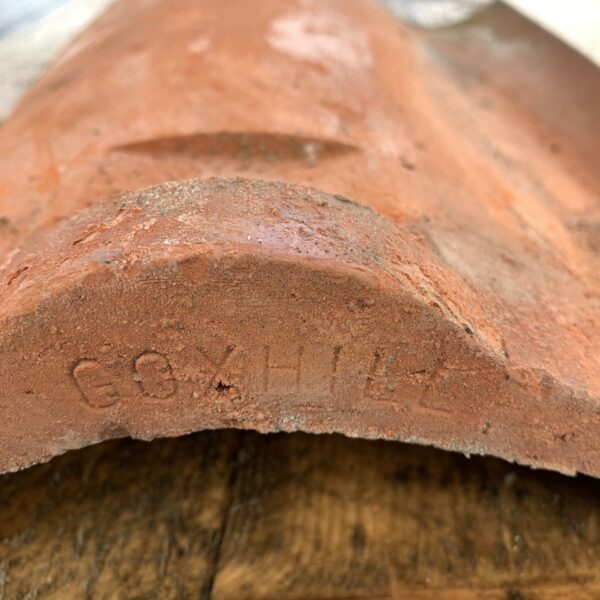

Goxhill Handmade Pantile

These tiles are nice traditional handmade pantile.

Our Goxhill tiles are weathered which would fit nicely on existing roofs, or even for a re roof to fit in with the rest of the old tiles.

All from same source which was a property in York city centre.

They are in perfect condition just weathered over time on previous roof.

They have been crated up ready for collection or delivery.

Find out more on reclaimed Pantiles here.

Weight	2.5 kg
Dimensions	35 × 25 × 35 cm

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:

Approx. 250 copper nails per kg
Minimum 2 nails per slate
Recommended length: 25–30 mm shank, 3.35 mm (4 gauge) head
