Reclaimed Sandtoft Double Pantile Concrete Roof Tile – Brown

Reclaimed Sandtoft Double Pan Tile Concrete Roof Tile – Brown - Image 2

Reclaimed Sandtoft Double Pan Tile Concrete Roof Tile – Brown - Image 3

SKU: RST-DOUBLEPANTILE-BROWN-420 Categories: Concrete Tiles, Reclaimed Roofing Materials

Reclaimed Sandtoft Double Pan Tile Concrete Roof Tile – Brown

Name: Reclaimed Sandtoft Double Pan Tile Concrete Roof Tile – Brown
SKU: RST-DOUBLEPANTILE-BROWN-420
Availability: InStock

The Reclaimed Co. Price:

£2.50 + Vat

90 in stock

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Directions

Find more stock

need assistance?

Request Video

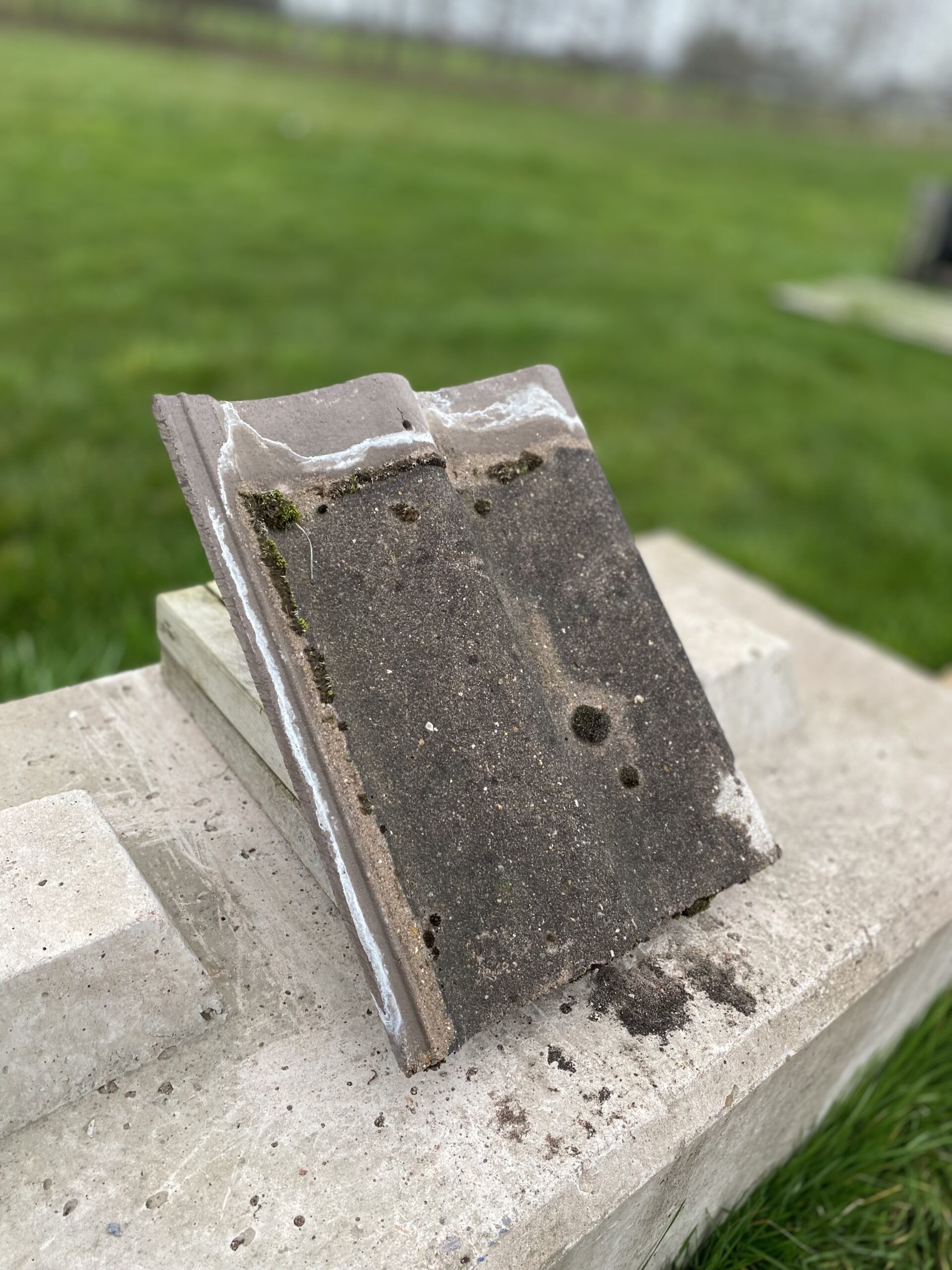

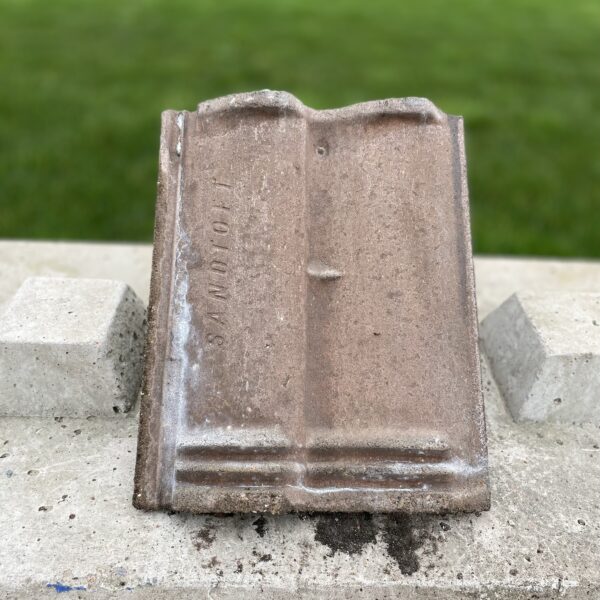

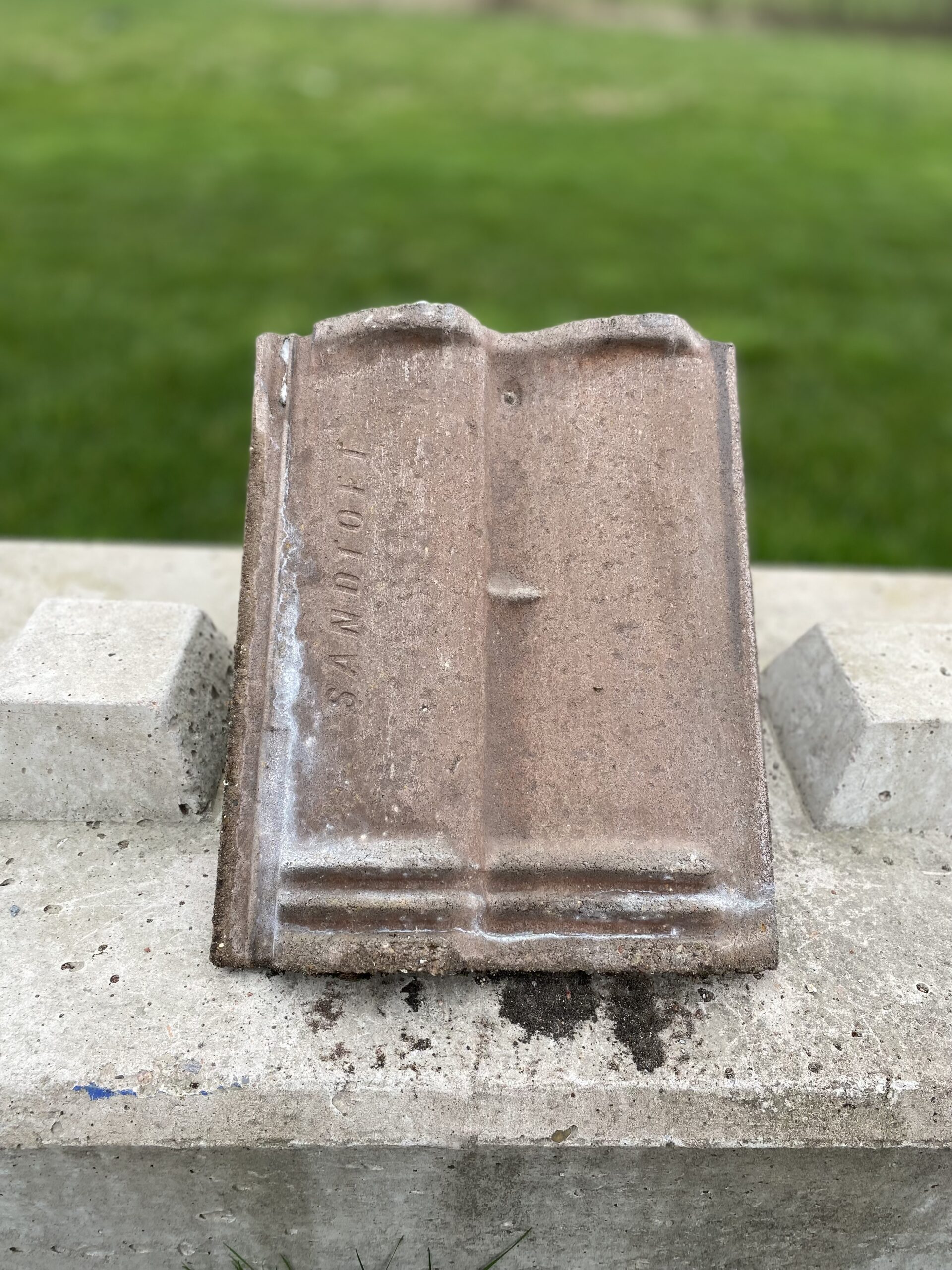

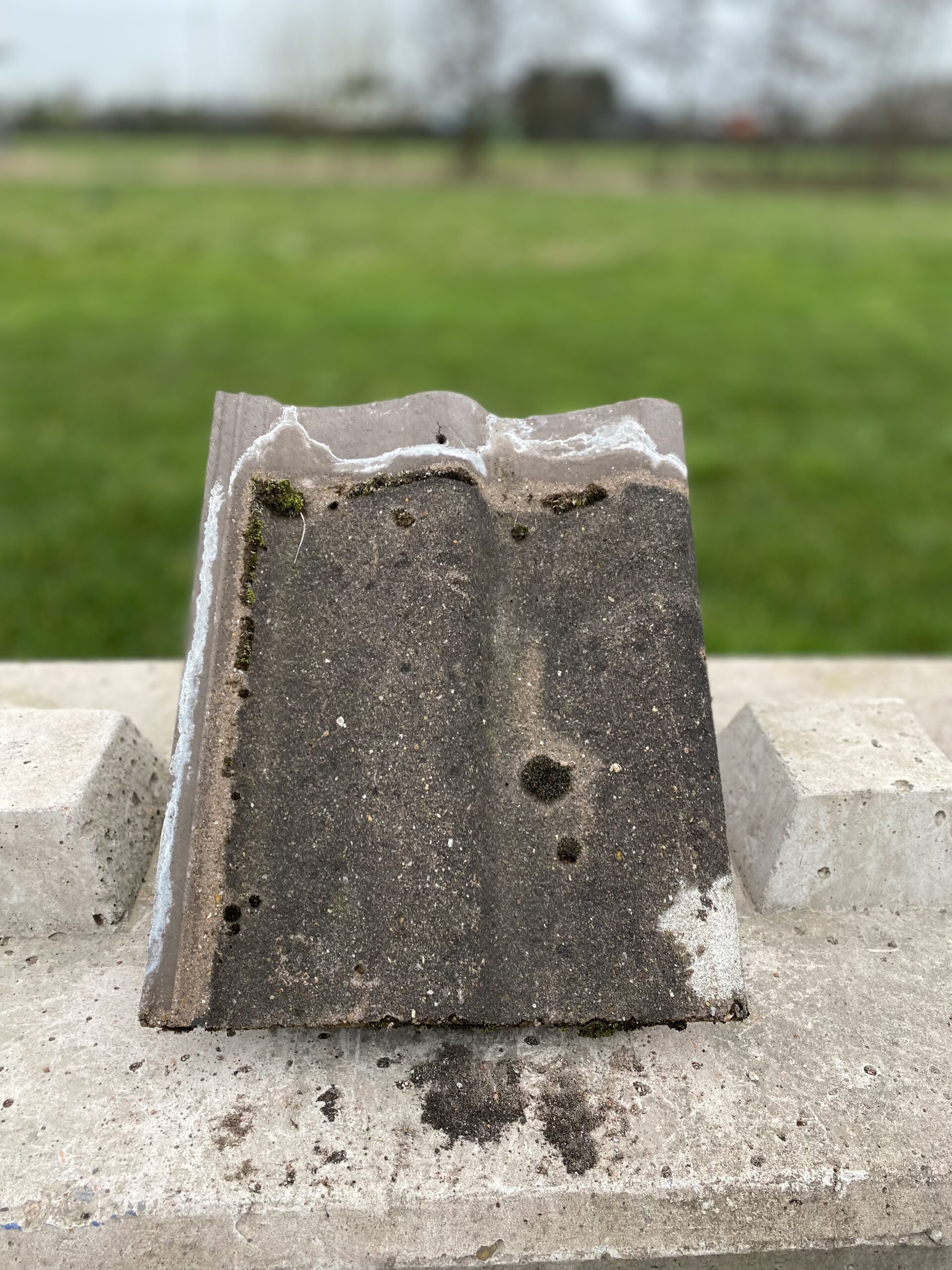

Reclaimed Sandtoft Double Pantile concrete roof tiles in a brown finish.
These large format interlocking concrete pantile roof tiles replicate the traditional pantile profile and are ideal for roof repairs.
Re-roofing projects, and heritage property restoration.
Carefully reclaimed from UK roofs, they provide a sustainable and cost-effective roofing solution while maintaining the brown character of traditional British roofscapes.

+Product Info

Description

Reclaimed Sandtoft Double Pantile Concrete Roof Tiles – Brown

Reclaimed Sandtoft Double Pantile Concrete Roof Tiles feature a classic double pan profile with two smooth flowing rolls, providing a traditional pantile appearance with modern interlocking performance. Carefully reclaimed from UK roofs, these tiles offer a sustainable and cost-effective solution for roof repairs, extensions, and full re-roofing projects. Their large format design allows for efficient installation while maintaining a timeless aesthetic.

Reclaimed Sandtoft Double Pantile Concrete Tile Technical Spec

Material: Concrete (reclaimed)
Colour: Brown / antique brown tone (weathered)
Tile size: Approx. 420 x 330–334 mm
Hanging length: ~398 – 400 mm
Profile: Double pantile (double pan, interlocking)
Cover width: ~300 mm
Roof coverage: ~9.5 tiles per m² @ 75 mm headlap / ~10 tiles per m² @ 100 mm headlap
Minimum roof pitch: 15° (smooth finish) / 30° (granular finish)
Maximum roof pitch: 90°
Headlap: 75 mm minimum
Batten spacing: ~300 – 345 mm
Weight per tile: ~4.2 – 4.6 kg
Weight as laid: ~43 – 48 kg per m²
Tiles per pallet: ~200 – 216
Fixings: Ring shank aluminium alloy nails, typically 45–65 x 3.35–3.75 mm (BS 5534 compliant)

These reclaimed Sandtoft Double Pantile concrete tiles are ideal for new builds, extensions, and roof repairs where a traditional pantile look is required. The interlocking design ensures reliable weather performance, while the double pan profile provides a distinctive flowing roof finish.

Reclaimed Roofing Expertise

Whether restoring a property or sourcing sustainable roofing materials, our reclaimed Sandtoft Double Pantile tiles offer durability, character, and value. All reclaimed tiles are carefully inspected, sorted, and cleaned to ensure quality and usability.

Explore our full range of reclaimed concrete roof tiles here. Learn more about our sourcing standards and reclaimed materials on our About Us – The Reclaimed Connection page.

Do you have any to sell?

Have similar reclaimed roofing materials available? List them on our specialist marketplace at The Reclaimed Company and connect with buyers looking for genuine reclaimed building materials. Your first listing is free!

Additional information

Weight	5 kg

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
