Reclaimed Clay Angle Cap Ridge Tile – 490-260

Name: Reclaimed Clay Angle Cap Ridge Tile – 490-260
SKU: RTC-ACR-RED-490-226-1
Availability: InStock

The Reclaimed Co. Price:

£12.00 + Vat

5 in stock

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Directions

Find more stock

need assistance?

Request Video

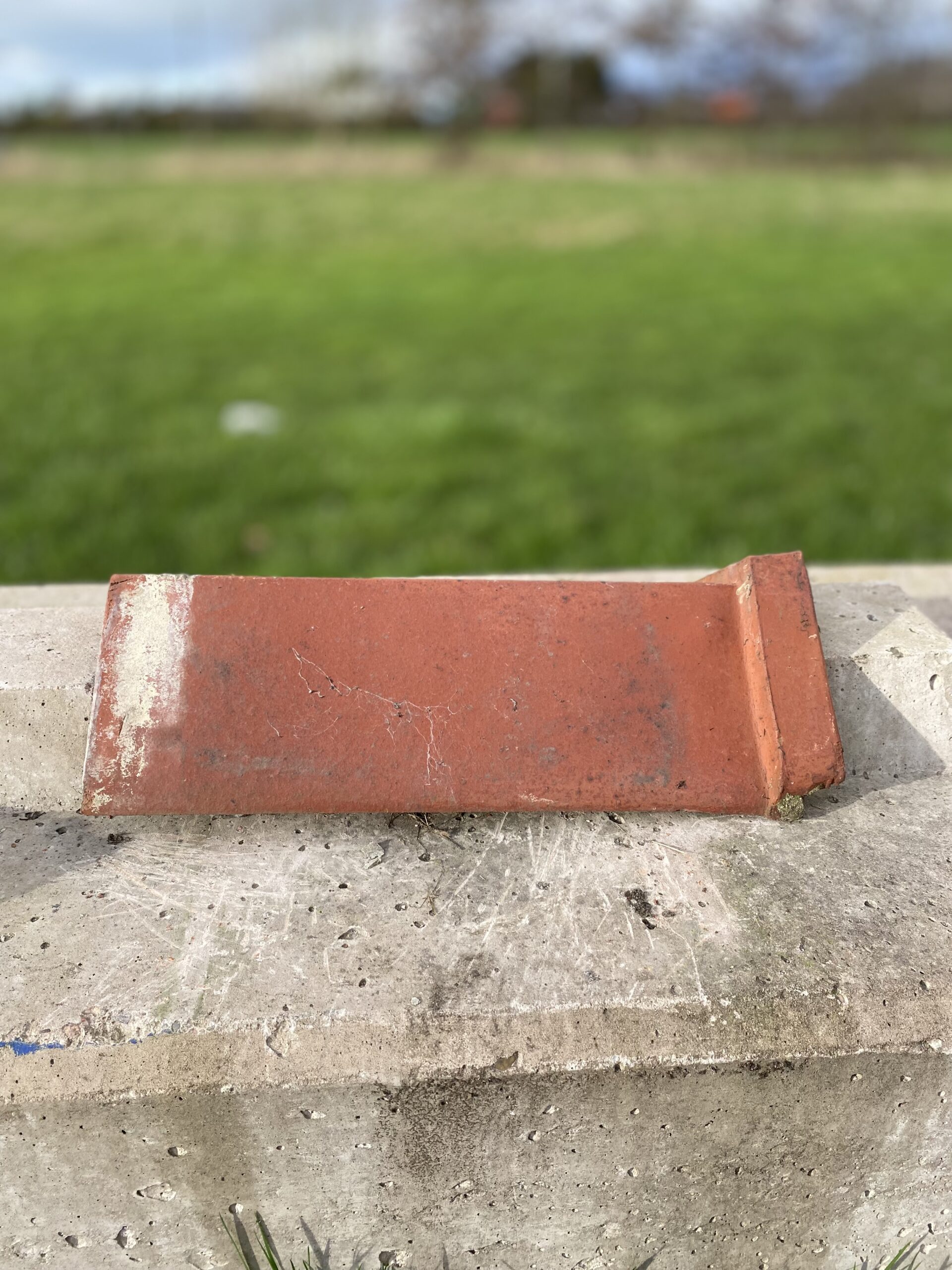

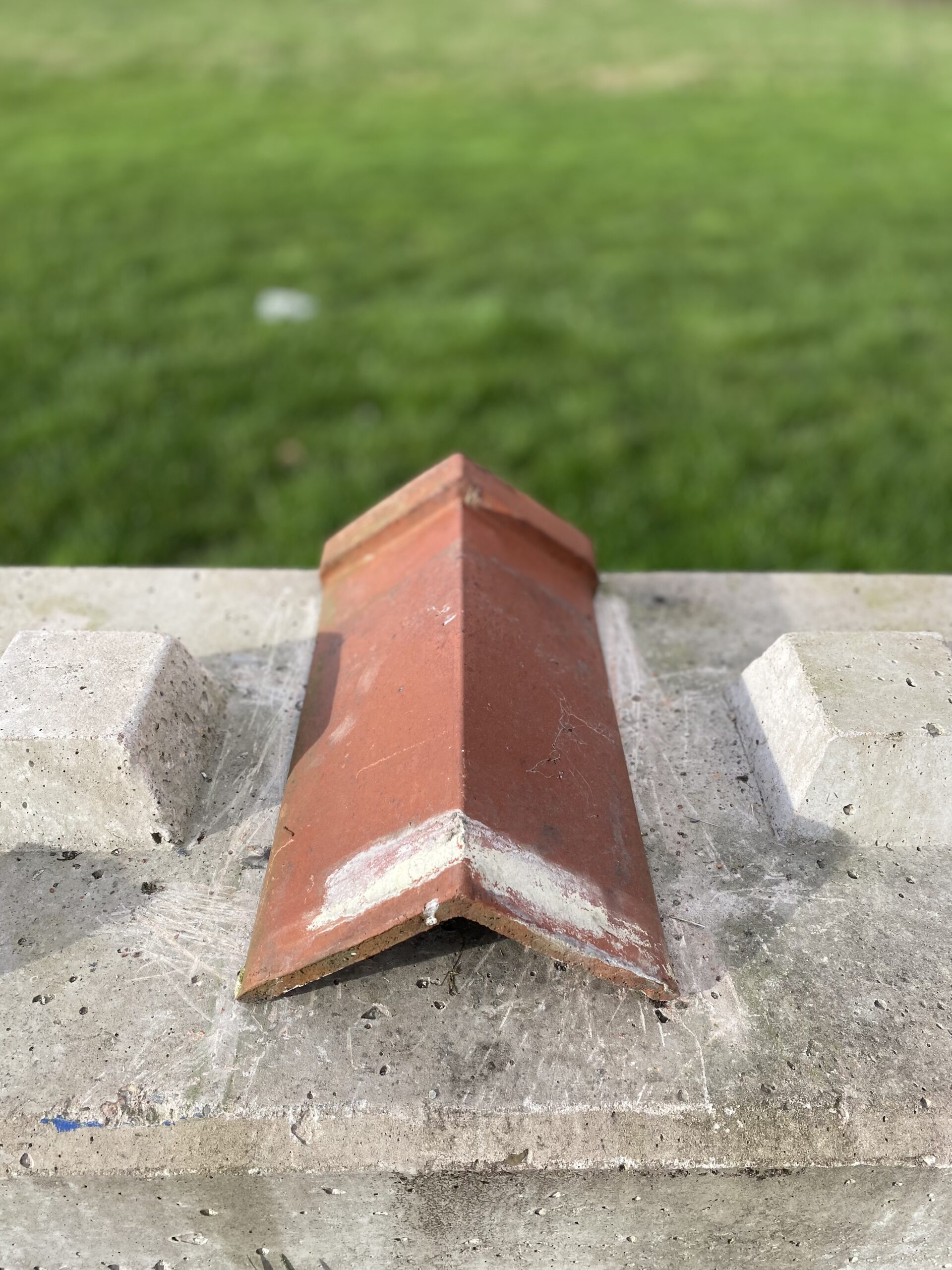

Reclaimed red / terracotta clay angle cap ridge tile with a traditional angled apex profile.
Measuring approximately 490mm x 260mm.
This weathered reclaimed ridge is ideal for roof repairs.
Heritage projects and matching existing clay ridge tiles.
Structurally sound with natural ageing and tonal variation consistent with genuine reclaimed roofing materials.

+Product Info

Description

Material: Clay
Profile: Angle cap ridge tile (angled apex with defined ridge line)
Size class: 490-260mm
Finish: Weathered reclaimed surface with natural ageing
Colour: terracotta/clay red clay with natural tonal variation from outdoor exposure
Condition: Structurally sound but cosmetically aged — surface wear, light chipping and minor marks typical of reclaimed stock

Overall look & use:
This reclaimed red / terracotta angle cap ridge offers a warm, traditional ridge finish, ideal for projects requiring a classic clay roofline or matching existing terracotta ridge tiles. Its natural weathering provides authentic character that blends seamlessly with older roofs.

It is particularly suited to:

Roof repairs and maintenance
Matching existing orange or terracotta ridge tiles
Period and heritage properties
Traditional clay tiled roofs
Cost-effective reclaimed roofing projects

View more reclaimed ridge tiles in our dedicated collection
here.

Learn more about our sourcing process and reclaimed material ethos on our
About Us – The Reclaimed Connection page.

Have similar reclaimed roofing materials to sell? List them on our marketplace at
The Reclaimed Company and connect with buyers looking for genuine reclaimed building materials.

All dimensions are approximate due to the nature of reclaimed materials.

Length	490mm
Width	260mm
Height	80mm
Pitch	Unknown
Thickness	20-25mm
Material	Clay
Condition	Reclaimed

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
