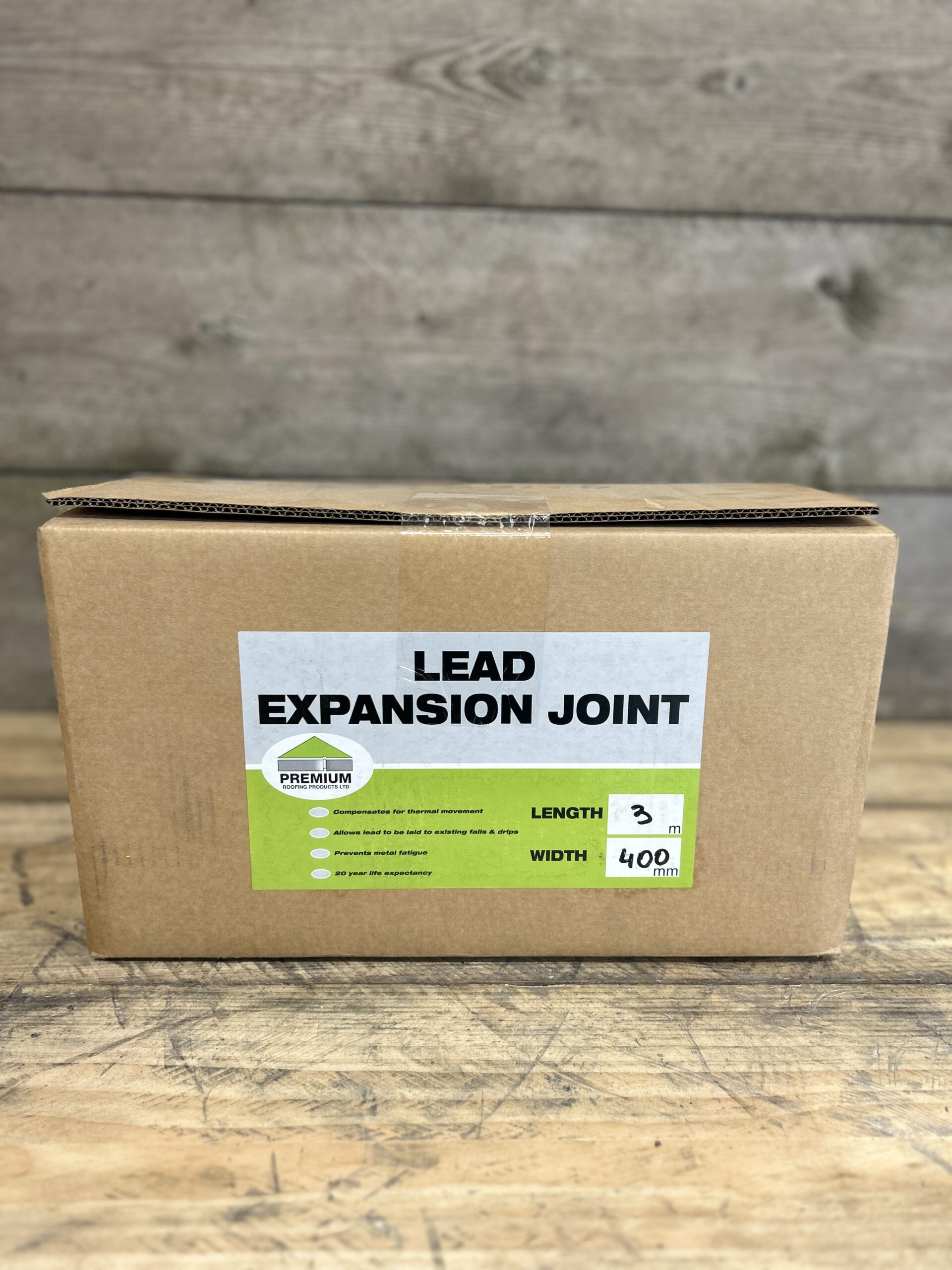

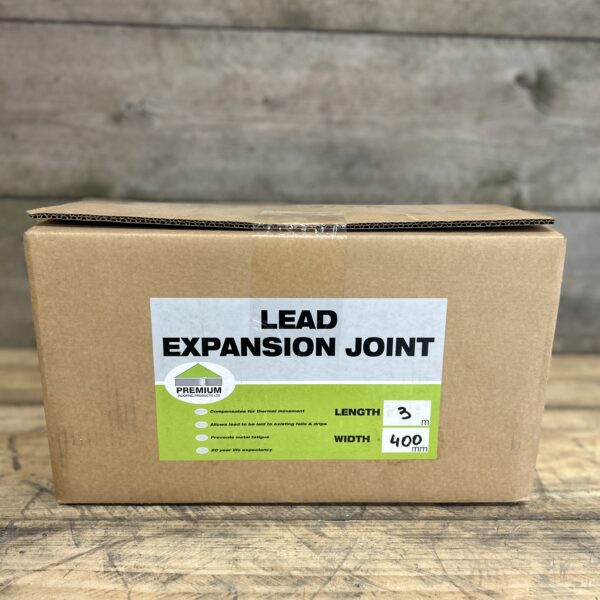

Expansion Joint

Name: Expansion Joint
SKU: 19fb5acafdbd
Availability: PreOrder

The Reclaimed Co. Price:

£300.00 + Vat

Available on backorder

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Directions

Find more stock

need assistance?

Request Video

Sold by the metre | Price stated is for 1 metre (l) of expansion joint 400mm (w)
lead expansion joint is used to allow expansion and contraction of rolled lead sheet where mechanical steps are not practical.
Often used in lead lined gutters.
Should be welded into position.

+Product Info

Description

Expansion Joint

What Are Lead Expansion Joints?

They are flexible sections of lead sheeting that allow for natural movement in a roof. Because lead expands and contracts with temperature changes, these joints help prevent cracking, buckling, and leaks over time.

Why Are They Important?

Prevents Cracking – Without expansion joints, lead can crack due to thermal movement.
Stops Water Leaks – Cracked lead can let water in, causing damage to the roof and structure.
Extends Roof Life – Helps the leadwork last longer by reducing stress on the material.

Where Are They Used?

Large Lead Roofs – On long stretches of lead to allow movement.
Lead Flashing – Around chimneys, valleys, and junctions where movement occurs.
Gutters & Parapets – In places where water and temperature changes put stress on the lead.

Final Thoughts

Using lead expansion joints is essential for any roofer or leadworker handling large lead surfaces. They prevent damage, leaks, and costly repairs down the line. By allowing natural expansion and contraction, they keep the roof looking great and performing well for decades.

To find more lead and lead sundries go here.

Have a better look on our lead shop here.

Additional information

Weight	20 kg

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
