Sale!

4300 Barco Pantiles | Same Source - Image 3

4300 Barco Pantiles | Same Source - Image 4

4300 Barco Pantiles | Same Source - Image 7

SKU: Barco Pantiles (same) Category: Pantiles

4300 Barco Pantiles | Same Source

Name: 4300 Barco Pantiles | Same Source
SKU: Barco Pantiles (same)
Availability: OutOfStock

The Reclaimed Co. Price:

Original price was: £6,450.00.Current price is: £5,950.00. + Vat

Out of stock

🚚 Delivery
🏪 Collection

Delivery calculated at checkout and can be delivered nationwide by pallet/courier or locally by our own fleet

Your nearest store:

York

Sutton Road, Wigginton, YO32 2RB

Directions

Find more stock

need assistance?

Request Video

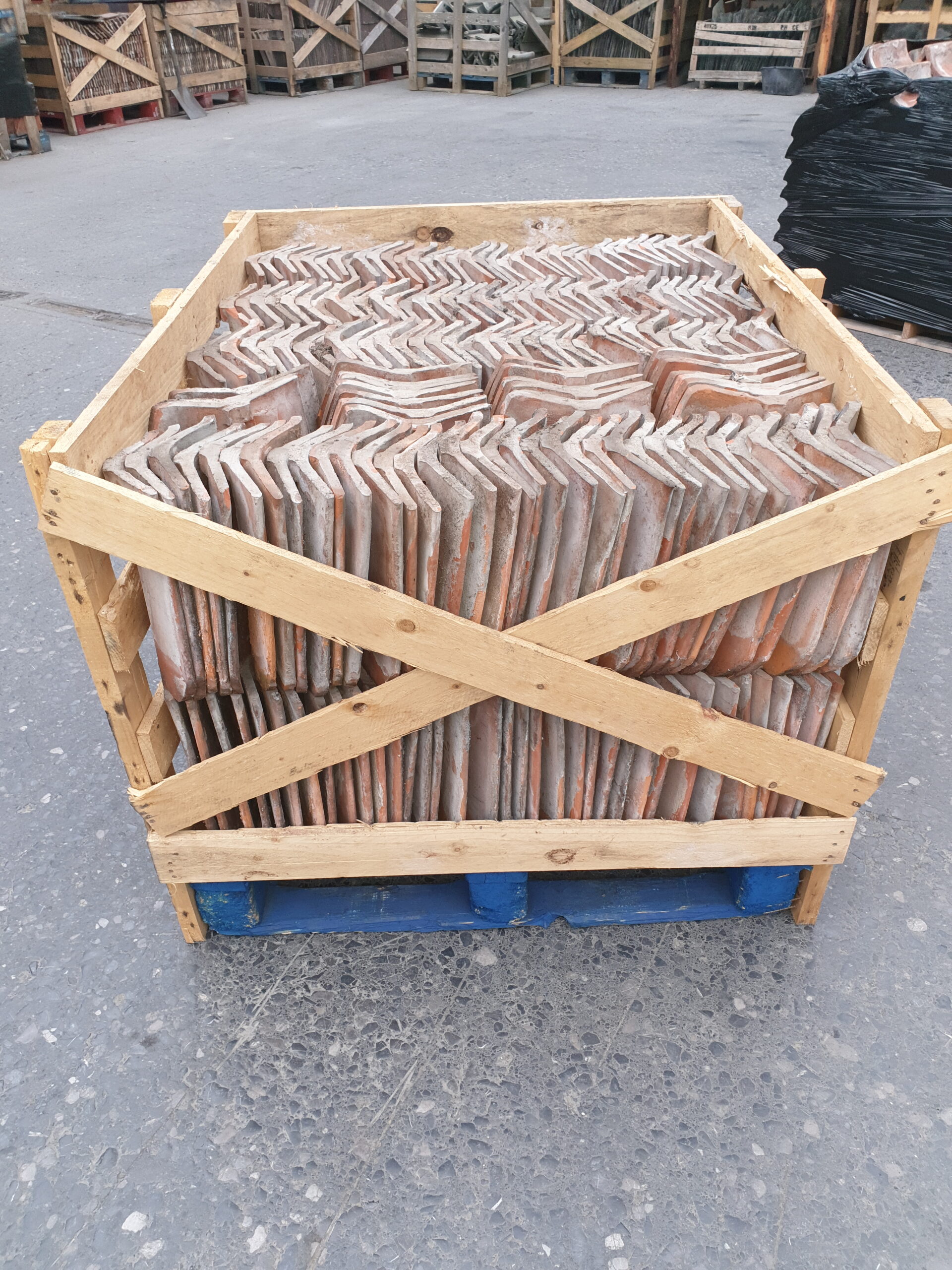

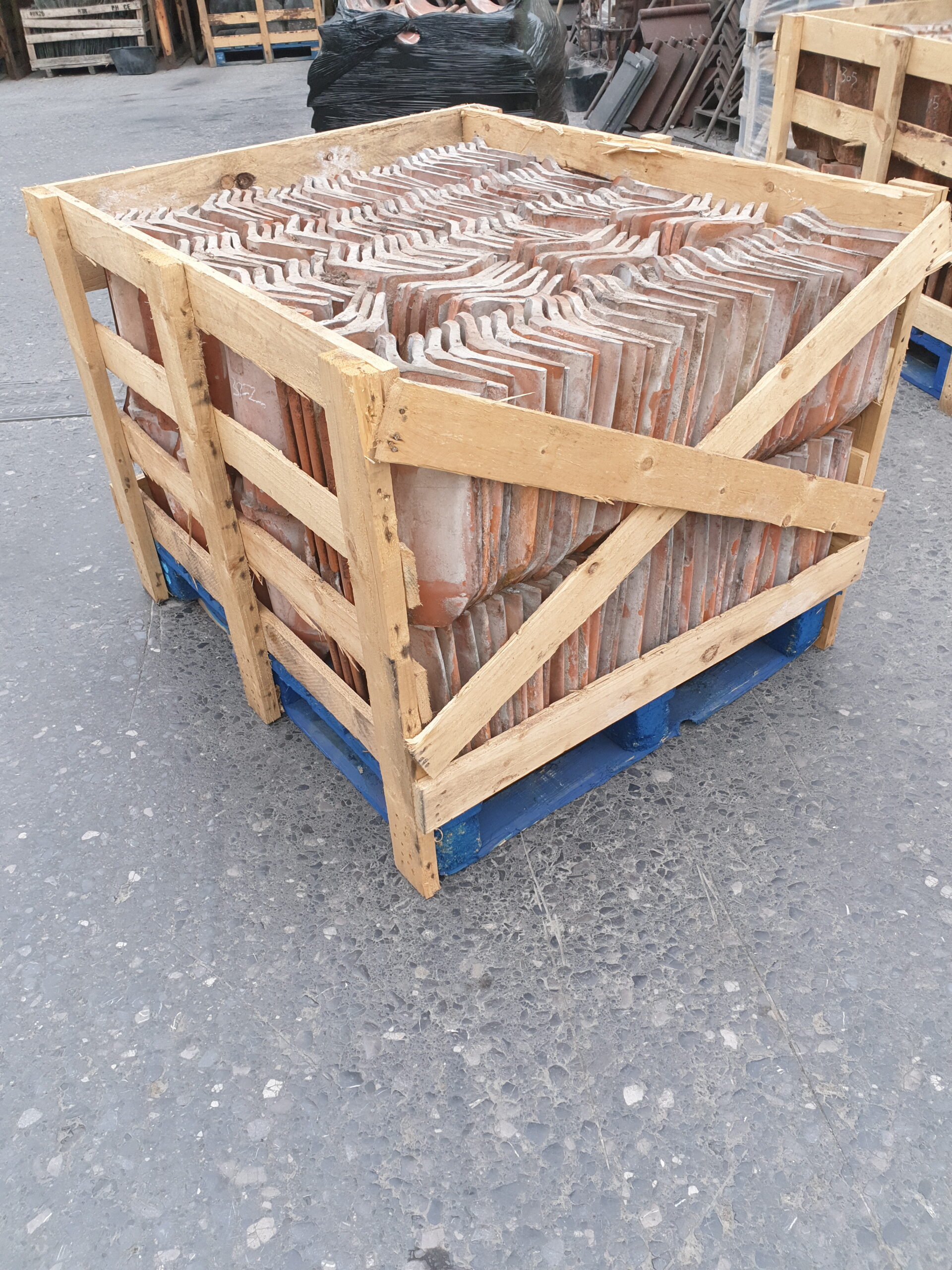

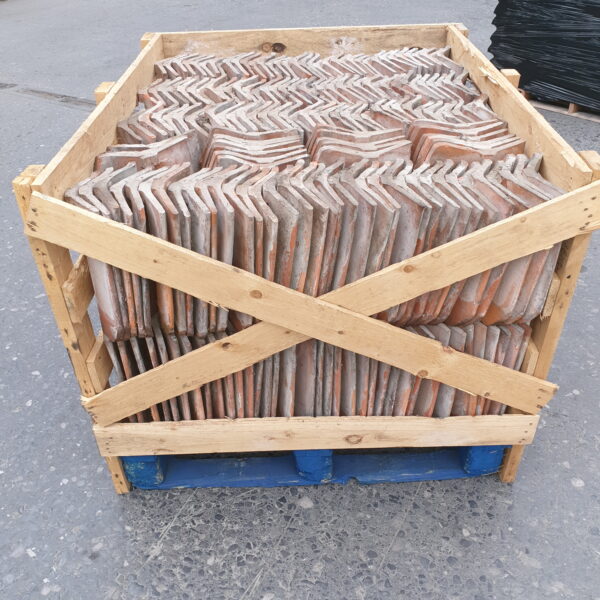

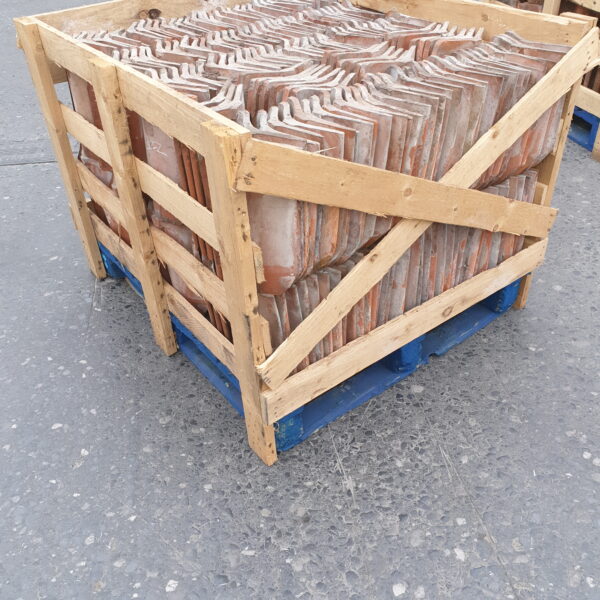

A single lot of 4300 Barco Pantiles salvaged from a single source. enough to cover 265m2 of roof area, fittings and left hand verge also available.

Material: Traditional hand-pressed clay
Manufacturer: William Blyth Ltd – Barco range
Type: Single-lap S-shaped pantile
Style: Reclaimed / weathered finish for heritage authenticity
Colour: Naturally aged red/orange tones with patina variation
Dimensions: Approx. 343mm (length) x 241mm (width) (may vary slightly due to handmade and reclaimed nature)
Coverage: 17.5 Tiles per m2. Batch covers 245m2.
Fixing: Typically nailed through pre-formed holes; suitable for traditional roofing battens
Application: Ideal for conservation areas, heritage restorations, and period properties
Performance: Durable and breathable; compatible with lime mortar detailing
Compatibility: Matches existing historic roofs in Yorkshire and Lincolnshire vernacular
Sustainability: Reclaimed product – environmentally responsible and visually authentic
Stock: Subject to availability; variations expected due to reclaim batch

+Product Info

Description

Reclaimed Barco Pantiles, same source.

Available only as a lot, 4300 high quality reclaimed Barco pantiles.

We also have left Han d verge and ridge tiles available and can deliver anywhere in the UK.

The price stated is for all 4300 tiles, due to the nature of this product, we cannot sell them individually as they are too good and have all come from a single source.

The lot will cover circa 245m2 of roof area.

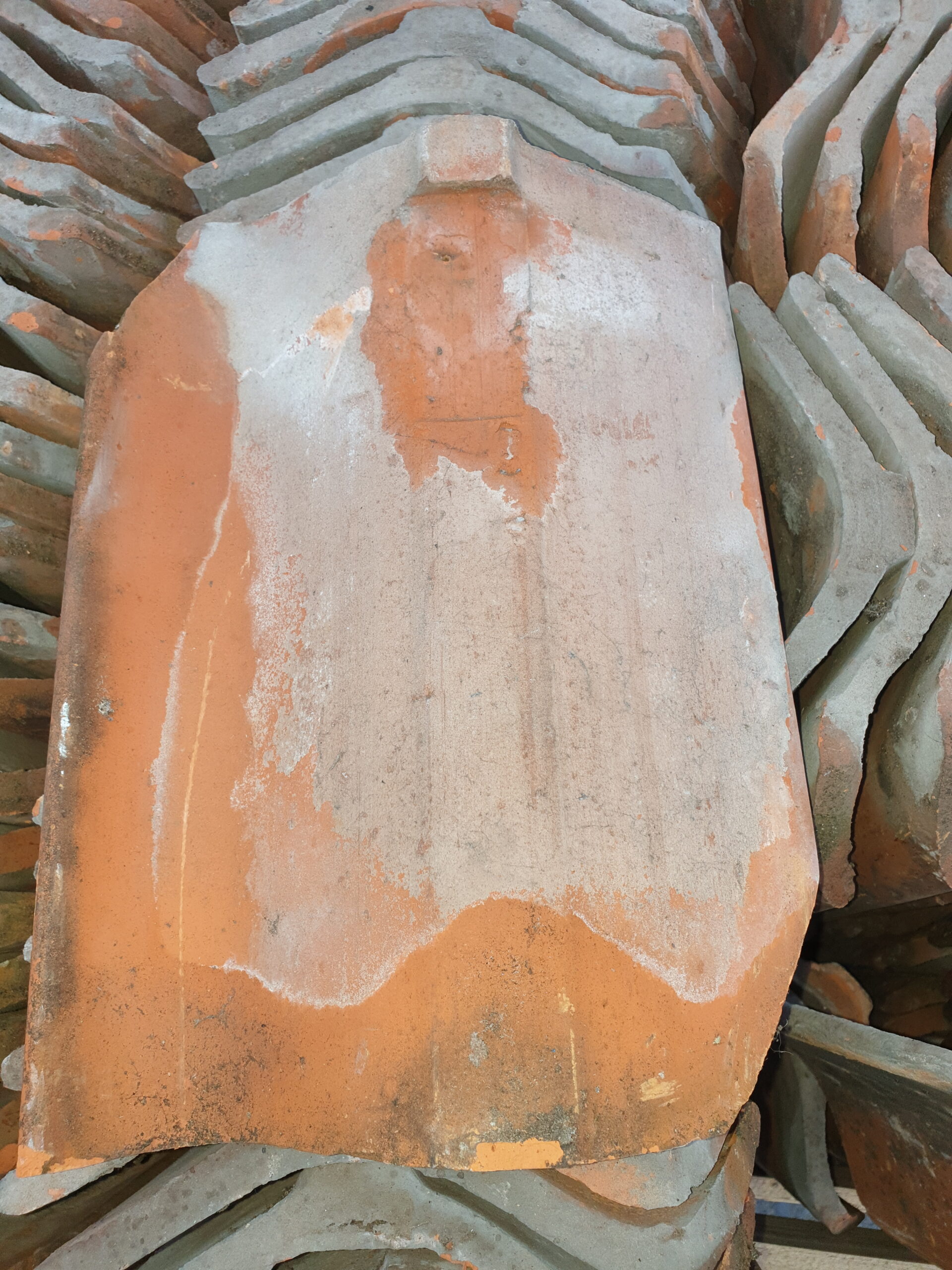

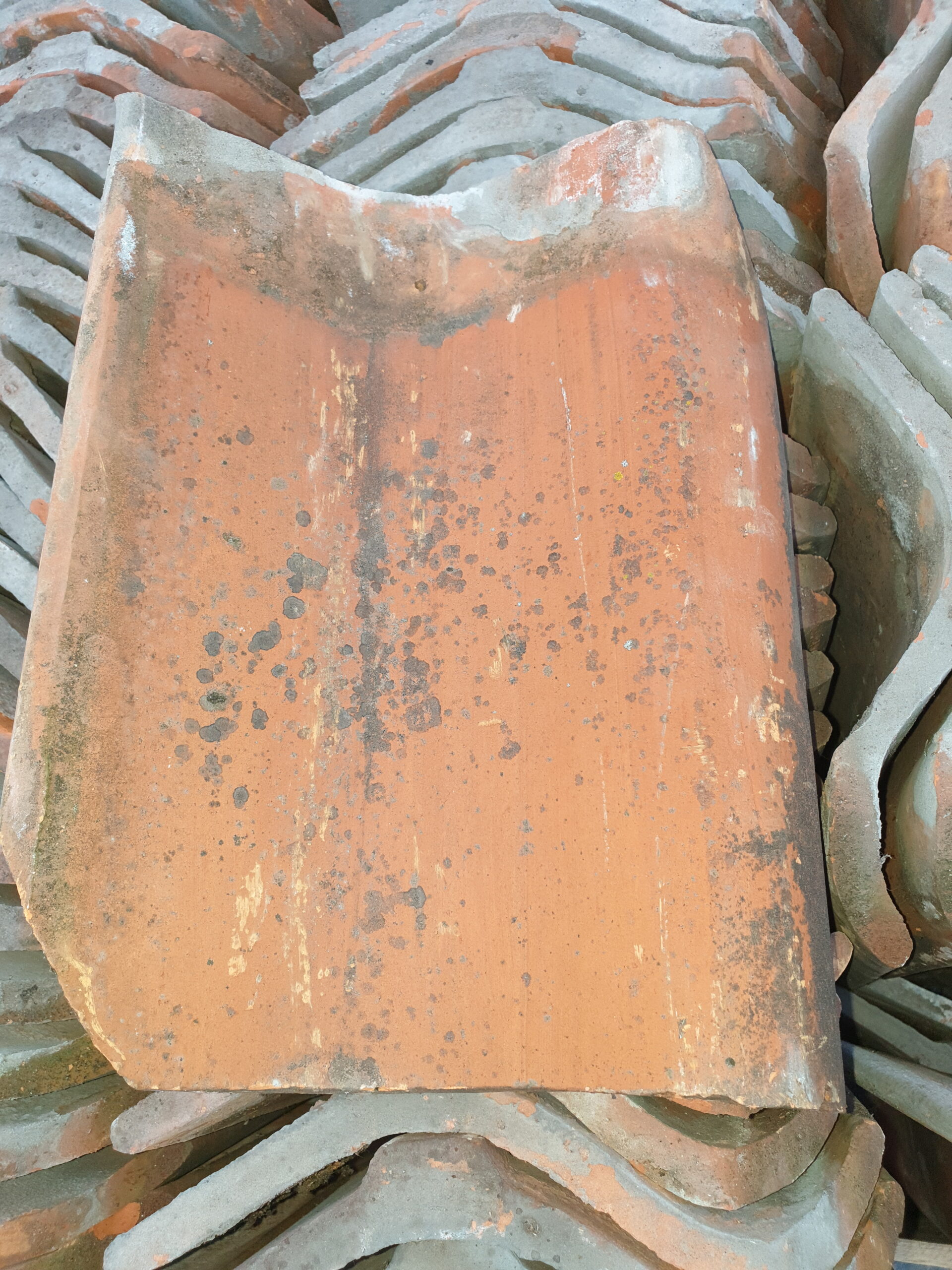

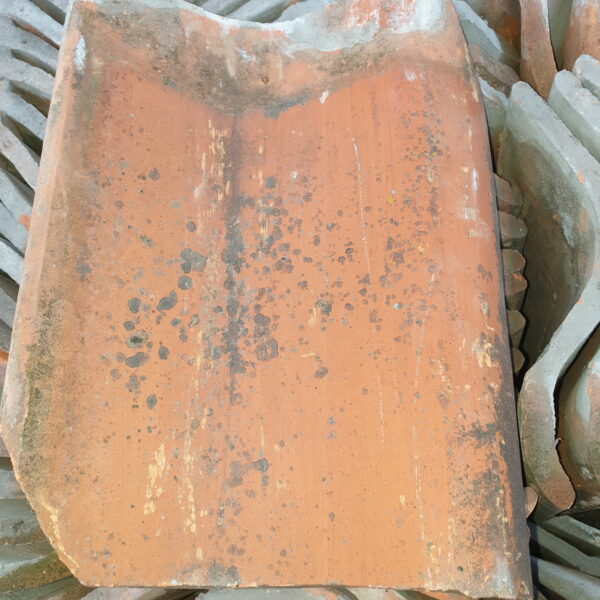

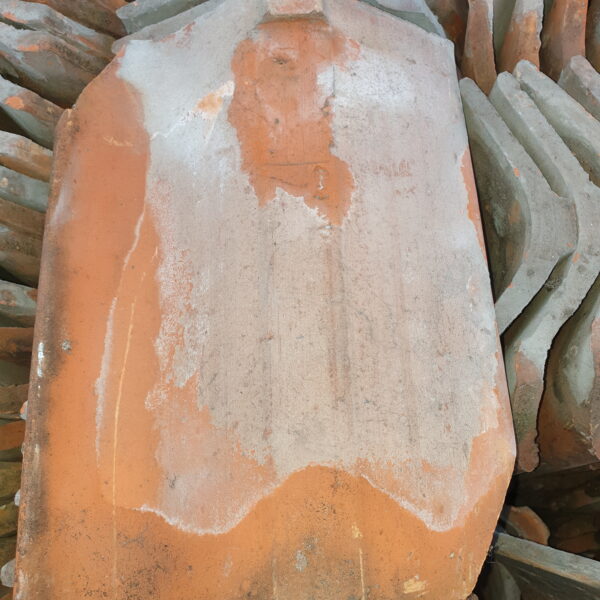

William Blyth Barco Pantiles – Traditional Clay Roofing with Heritage Character

The William Blyth Barco Pantile is a classic, hand-pressed clay tile that embodies the enduring craftsmanship of traditional British roofing. Manufactured in Lincolnshire using centuries-old techniques, the Barco pantile offers the authentic character and weathered finish that makes it ideal for heritage restoration, conservation areas, and period-style new builds.

Key Features:

Material: High-quality, hand-pressed natural clay
Finish: Traditional single-lap S-shaped pantile with a distinctive undulating profile
Colour: Warm, heritage red/orange tones that mellow beautifully over time
Dimensions: Approx. 420mm (L) x 265mm (W) – handmade tolerances apply
Fixing: Pre-formed nail holes for standard batten fixing on pitched roofs
Performance: Excellent breathability, durability, and natural weathering properties

Designed to blend seamlessly with the regional vernacular of Eastern and Northern England, Barco pantiles offer the charm and practicality of traditional clay roofing, making them a preferred choice for architects, builders, and conservation specialists alike.

Matching Components Available:

Left-Hand Verge Tiles – Designed for a neat, weather-tight finish to exposed verges
Matching Ridge Tiles – Traditional clay ridges available to complement the pantile profile and colour

Whether used in conjunction with reclaimed tiles or as a complete new covering, William Blyth Barco Pantiles deliver timeless appeal, trusted performance, and architectural integrity for roofs that require both function and heritage accuracy.

Additional information

Weight	2 kg
Dimensions	35 × 24 cm

Slate Calculator

Slating Headlap

Lap

Expandable Headlap Info

Choosing Headlap

Definition: The vertical overlap between successive rows of tiles to prevent water ingress.

Factors to consider:

Roof pitch: Shallower pitches (< 30°) need 75–100 mm; steeper (> 45°) can use 50 mm.
Climate & exposure: Wind-driven rain or heavy rainfall zones benefit from more headlap.
Tile profile: Deeper tiles may require extra overlap to seal correctly.

Rule of thumb:

Standard (30–45°): 50–75 mm
Low (< 30°): 75–100 mm
High (> 45°): 50 mm

Slate Size / Type

Slate 50mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 75mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slate 100mm Lap

Selecting Tile Size

Coverage per tile: Larger tiles cover more area but are heavier, affecting handling and substrate load.

Aesthetic scale: Big tiles suit modern, minimal lines on large roofs; smaller tiles give more texture and a traditional look.

Structural limits: Check rafters and battens can support the chosen tile’s weight and fixing centres.

Installation speed vs. waste: Larger tiles lay faster but may require more cutting at edges, increasing waste. Smaller tiles take longer but can reduce off-cuts.

Compatibility: Ensure the tile size works with your chosen headlap & side-lap for correct coverage per m².

By balancing pitch, weather, substrate capacity and appearance, you’ll pick the optimal tile size for performance and style.

Slates Per m2

Expandable Slates per m² Info

Calculating Slates per m²

Definition: Number of slates needed to cover one square metre.

Formula: 1 000 000 mm² ÷ (effective width × effective height)

Where:

Effective width = tile width – side lap
Effective height = tile height – head lap

Example: 610 mm × 355 mm tile, 20 mm side lap, 75 mm head lap:

Effective width: 610 − 20 = 590 mm
Effective height: 355 − 75 = 280 mm
Area per slate: 590 × 280 = 165 200 mm²
Slates per m²: 1 000 000 ÷ 165 200 ≈ 6.05

Adjust your headlap and sidelap values for precise coverage calculations.

Slate Required(Required)

Measure Your Roof Area

Determining Your Roof’s Area (m²) Accurately measuring your roof is essential to estimate how much slate you’ll need. Follow these steps: Measure the rafter length Runs from the gutter up to the ridge line.

Width (m)

Length (m)

Total Mtr²

Total Slates Required

Copper Nails Total KG

Expandable Copper Nails Info

Copper Nails for Slating: Overview & Specs

Why use copper nails?

Corrosion resistance: Forms a protective patina to prevent rust and staining.
Superior durability: Lasts for decades without needing replacement.
Optimal flexibility: Absorbs roof movement without cracking or shearing.
Aesthetic harmony: Weathers to a warm patina that complements natural slate.
Chemical compatibility: No galvanic reaction with slate or lead flashings.

Packaging & usage:
